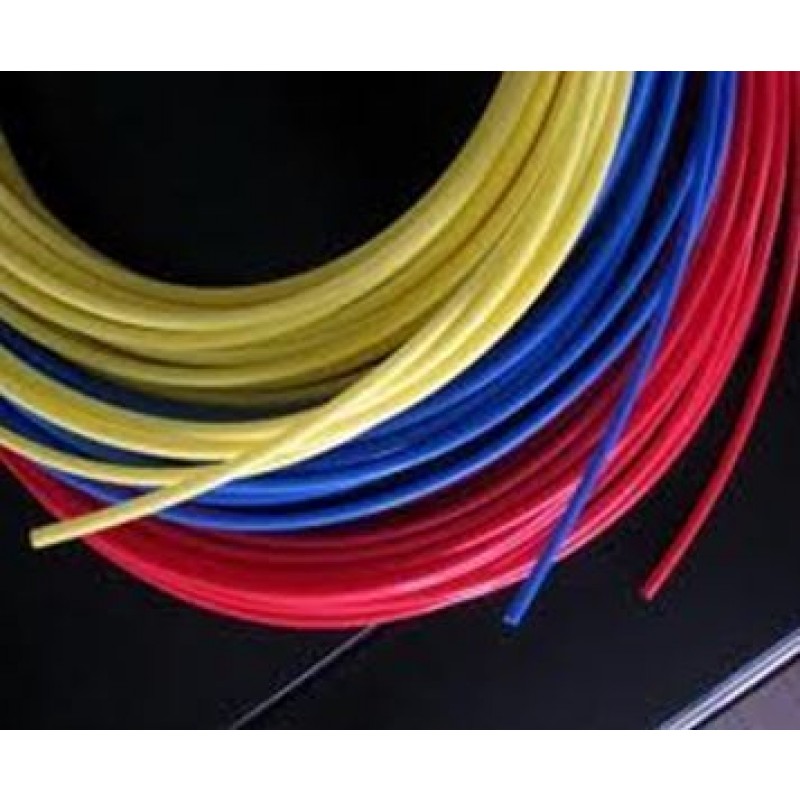

PTFE (TEFLON®) SLEEVES

PTFE (TEFLON®) Sleeves – JSS – 54802

Sr. No.

Bore Dia

Wall Thickness

Overall Diameter

JSS Style

1.

0.5

0.25

1.0

SED 01

2.

0.75

0.25

1.25

SED 02

3.

1.0

0.3

1.6

SED 03

4.

1.5

0.3

2.1



5.

1.5

0.4

2.3

SED 04

6.

2.0

0.3

2.6



7.

2.0

0.4

2.8

SED 05

8.

2.5

0.4

3.3

SED 06

9.

3.0

0.4

3.8

SED 07

10.

3.5

0.5

4.5

SED 08

11.

4.0

0.5

5.0

SED 09

12.

5.0

0.5

6.0

SED 10

13.

6.0

0.5

7.0

SED 11

14.

7.0

0.5

8.0

SED 12

15.

8.0

0.5

9.0

SED 13

16.

9.0

0.5

10.0

SED 14

17.

10.0

0.5

11.0



18.

12.0

1.0

14.0



ADVANTAGES

  • High Performance From -200°C To 260°C (Peak 300°C)
  • Unaffected At Soldering Temperatures; Autoclavable
  • Suitable For High-Density Wiring
  • Smooth Internals Allow Closer Fit
  • Superior Tape-Wrapping-Sintering (TWS) Method Provides Good Mechanical Stability, High Burst Pressure And Long Flex-life
  • High Dielectric Strength
  • Resistant To UV Radiation
  • Fire Non-propagating
  • Inert To Almost All Chemicals (few Exceptions), Solvents, Fluxes, Oils; Zero Extractables
  • Freedom From Ageing, Fungus And Water Absorption
  • Biocompatible

APPLICATIONS

Our PTFE Sleeves/Tubings Find Uses In The Following application Areas

  • Defence AndMilitaryElectronics, Radars; Aircraft And Satellites
  • Communcations/Electronics
    • Control Systems
    • Computers And Professional Electronics
    • RF Signal Transmission, Antennas
  • Electrical
    • Insulating Cover For Transformer Winding Leads And Other Electrical Joints, Including Heater Interconnections
    • Insulating Cover Over Immersion Heaters For Aggressive Chemicals Or Corrosive Liquids
    • As Stress Relief Boots At Connector Ends For Harnesses/cable Assemblies
    • Protective Cover Over Electrical Leads In Air-conditioning/Refrigeration Sealed Units
  • Medical
    • Highly Flexible PTFE/PFA Dual-wall Tubings For Semi-medical (low-pressure, Low-diffusion, Gas Flow Devices) Applications
    • For Manufacturing Resection Loops For Prostate Surgery
    • Endoscopic, Eurodormia Applications
    • Cover For Sclerotherapy Needles
    • In Catheters And Canulas
  • Chemical/Petroleum
    • As Carriers For Corrosive, High Viscosity Chemicals Or Fluids, Also Under High Pressure And Temperature
    • As Flexible Carriers For Steam
    • As Ink Capillaries For Pen Recorders
    • Gas Discharge Tubes
    • Bushes Cut To Size, Distillation Column Packing
    • Insulating Cover Over Stirrers For Acids And Corrosive Liquies
  • Hydraylic/Pneumatic
    • As Protective Cover Over Hoses For Injection Moulding Machines
    • Hoses (with Or Without Stainless Steel Wire Braid) For Hydraulic/pneumatic Applications
  • Automotive
    • Gear Box Control Interconnections
    • For Branching Leads In Harness/cable Assembly
    • Used As Cover Over Push-pull Cable To Reduce Friction

SPECIFICATIONS

  • As Per MIL-I-22129C USA Military Standards And JSS 54802 Indian Defence Standards; Type-Approved By Indian Defence Authorities Since 1991
  • 100% Inspected
  • Rated Break Down Voltages (BDV) As Follows:
Wall ThicknessBDV (AC RMS)
 0.25 Mm                       11.5 KV
 0.30 Mm                       14.6 KV
 0.40 Mm                       16.3 KV
 0.50 Mm                       17.0 KV
  • Heat-Shrink Tubings Of PTFE Under Development

ORDERING INFORMATION

Please Specify Nominal ID, Wall Thickness And Colour (click Here for Some Standard Sizes).  All 10 Standard Electronic Colours As Per MIL-STD-104, Natural & Pink, And Lighter Shades Of Blue And Green Are Available (click Here For Detailed Discussion On Colours).

Standard Packaging
Upto 3.5 Mm ID:  50/100 M Coils, 1-10 Metres Nominal, Random Lengths.
4 Mm Or Larger ID: 50/100 Metre Straight Bundles, 1 Metre Nominal, Random Lengths.

Cut Lengths: Pieces Cut To Specified Lengths Also Available.
