PTFE (TEFLON®) RF Co-Axial And Tri-Axial Cables



CO-AXIAL : JSS 51100
AMERICAN MILITARY SPECIFICATION MIL-C-17

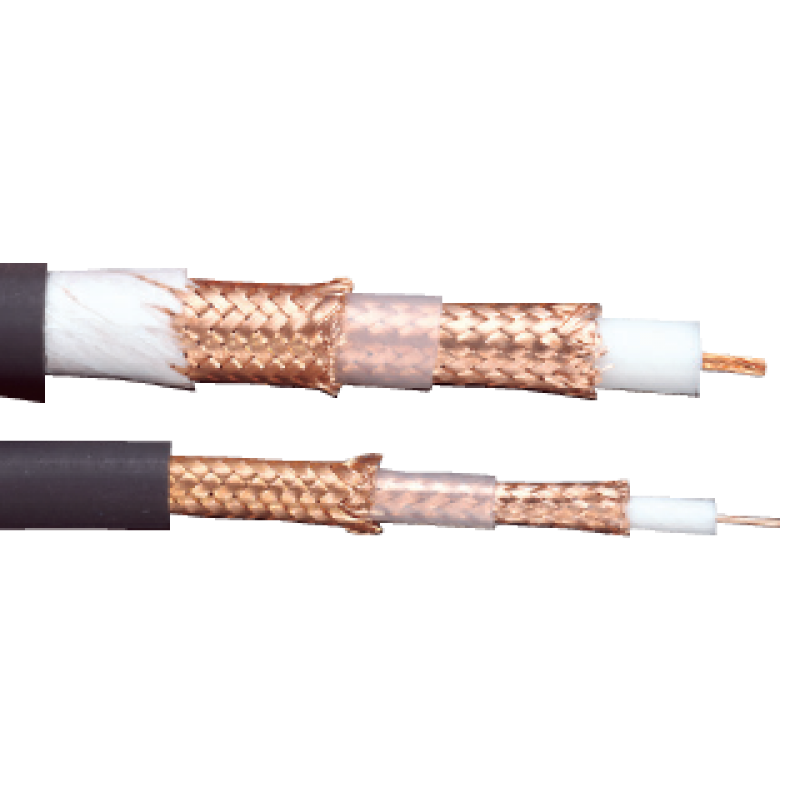

Construction  :  Silver Plated Copper Covered Steel, PTFE (TEFLON®) Insulation, Single Braid Of Silver Plated Copper Wire With Overall Sheath Of PTFE

 PHYSICAL CHARACTERISTICS :   SIZE
  RG
  187 A/U
  RG
  188 A/U
  RG
  195 A/U
  RG
  196 A/U
 INNER CONDUCTOR :
 Silver Plated
 Copper Covered Steel
  mm.
  Inch
  7/0. 10
  7/0. 004
  7/0. 17
  7/0. 0067
  7/0. 10   7/0. 004
  7/0. 10
  7/0. 004
 INSULATION :  Diameter
 PTFE  mm.
 Inch.
  1.60
  0.060
  1.52
  0.060
  2.59
  0.102
  0.86
  0.034
 SHIELD  Diameter
 Silver Plated
 Copper Covered Steel
 mm.
 Inch.
  2.06
  0.081.
  1.98
  0.078
  3.05
  0.120
  1.32
  0.052
 SHEATH  Diameter
 PTFE  mm.
 Inch.
  2.79
  0.112
  2.79
  0.078
  3.94
  0.158
  2.03
  0.081
 NOMINAL WEIGHT  Kg./Km.
  16
  16
  30
  8.5
 Equivalent JSS No
WRC – 55
  WRC – 46
  WRC - 59
  WRC - 45





ELECTRICAL CHARACTERISTICS :

SIZE

RG 187 A/U

RG 188 A/U

RG 195 A/U

RG 196 A/U

Characteristic Impedance   :

Ohms

75

50

95

50

Nominal Capacitance

PF/mt.

64.0

95.0

49.2

93.5

Nominal Velocity Ratio



0.695

0.695

0.695

0.695

Nominal Attenuation Db/mt, At

MHZ





100

0.33

0.37

0.18

0.46



200

0.41

0.47

0.23

0.62



400

0.53

0.55

0.35

0.92



1000

0.79

1.02

0.56

1.50

Maximum Power Rating Watts In Air
Ambient Temp 40oat

MHZ





100

480

400

800

240



200

420

325

570

180



400

320

275

400

120



1000

190

150

240

75

Maximum RF Voltage

KV {Peak)

1.2

1.2

1.5

1.0

Dielectric Strength ACRMS

(min.)

2.0

2.0

2.0

2.0

Insulation Resistance Mag Ohm/Km,



23000

23000

23000

23000



PTFE (TEFLON)® Cable Applications

SATELLITE CABLE Are One Of The Leading Manufacturer Of PTFE (TEFLON)® Cable & Wire Manufacturer From Ahmedabad. Owing to the efforts of our capable and skilled teams of experts, we have earned position in the field of manufacturing and supplying the superior quality Cables & Wires. Our rich industry experience have enabled us to chance the various supplies of the market as well as of our precious clients. Our PTFE (TEFLON)® Cable & Wire mainly applicable in Industries, Aircraft, Helicopters & Military Equiments.
