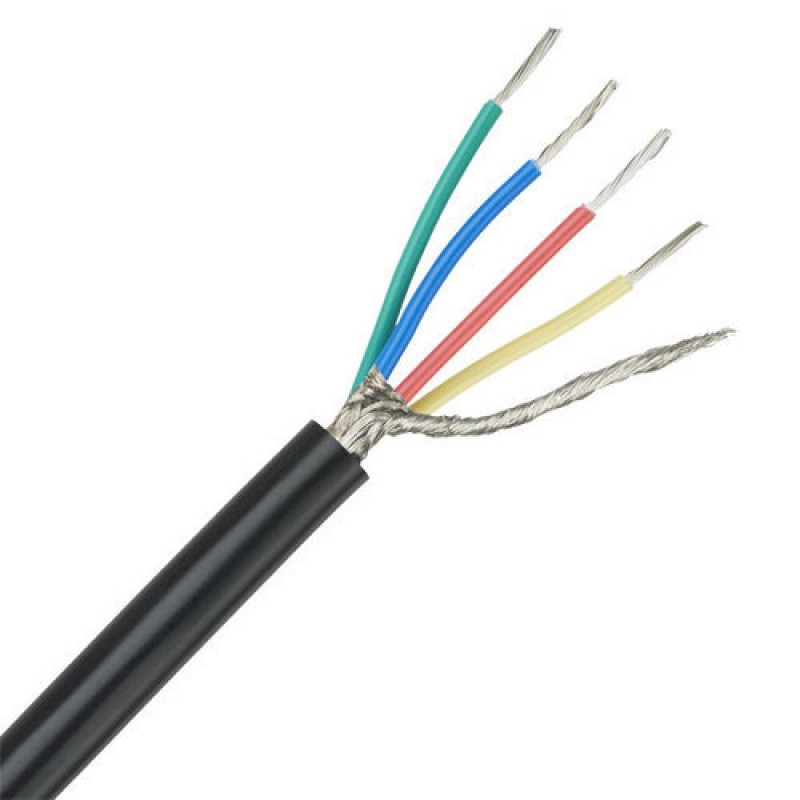

PTFE (TEFLON®) Multi Cores / Pairs Sheathed Cables With Shield Or Without Shield

PTFE (TEFLON®) Insulated Multi-core Cables Are Required Mainly For High-reliability And High-temperature Interconnections For signal And control applications.  We Refer To A Case Where We Manufactured A Special Cable For British Nuclear Energy To Control A Nuclear Robotic Arm.  This Cable Had 28 Members, Some For Sensing Temperature, Some For Audio Signals, Some For Video Signals, A Few For Operating The Lights Inside The Reactor, A Number Of Others For Activating The Motor, And So On.  Even Though Most Common Cables Would Not Have Such A Large Number Of Applications In A Single Construction, It Is Sufficient To Illustrate The Varied Uses Of Multi-core Cables.

A Simple Twisted Pair Is A Basic Example Of Multi-core Cable For Signal Applications; This Is Commonly Used In Communications Because Of The Well-known Property Of common-mode Cancellation.  This Is An Example Of Balanced Transmission As Opposed To Unbalanced Transmission Using RF Coaxial Cables.  Unshielded Twisted Pairs (UTP) Are Now Commonly Used For LAN Cabling (Category 5, 5e, 6 Cables).  We Are Presently Working On LAN Cables For High Frequency Requirements (such As 400 MHz And Above).

We Offer Any Number Of Pairs, Triads, Quads Etc. Combined Into One Large Cable, With Or Without Shielding On Individual Pairs/triads/quads, As Well As With Overall Shielding.  Jackets Can Be PTFE, Or Varnished Fibre Glass (VFG), For High Temperature Requirements. Since PTFE (TEFLON®) Jackets On Large Sized Multi-core Cables Are Extremely Difficult, PVC Or PU Jackets Are Sometimes Used.

SPECIFICATIONS: There Are No Commonly Accepted Standards Governing Multi-core Cables; The Cores Normally Refer To MIL Standards Such As MIL-W-16878, If These Are Equipment Wires, Or MIL-C-17 If The Cores Are RF Coaxial Cables, And So On.  For Aircraft Applications, MIL-C-27500 Is A Comphrehensive Multi-core Spec Based On The Cores Governed By MIL-W-22759.

MINIATURE SHIELDED WIRES/PAIRS/MULTI-CORE CABLES

In Many Equipments, Circuit Frequencies Range Between 100 KHz And Several MHz.  In These Sensitive High Impedance Circuits, It Is Necessary To Use shielded Wires, And In Balanced Circuits, shielded Twisted Pairs (STP)(often With Jackets).  In These Circuits, It Is Important To Prevent Interference From External Vibration, Noise And Common Mode Signals.  Problems Like Mismatch, Attenuation And Radiation Are Not Significant.  Coaxial Cables For Such Applications Are Expensive And Unnecessary.

Miniature Wires, Planetary Twisted Pairs And Multi-core Cables Utilize Fine Core Conductors In Sizes Down To AWG 36 (with Single Or 7 Strands).  A Reliable Multi-layer, Sintered PTFE Insulation Of 0.15 Mm For Single Core And 0.18 Mm For Twisted Pairs Is Then Applied.  Single, Twisted Pair Multi-core Constructions With Or Without Colour Codes, Are Then Shielded And Jacketed.  The Combined Radial Thickness For Shield And Jacket Is 0.15 Mm.  PTFE Jackets Of 0.1 Mm Wall Are Preferred To Provide Shield Isolation Or Selective Grounding.

SPECIAL SHIELDING TECHNIQUES  Temperature Or Grounding Specifications May Exclude Aluminised Mylar Shields (which Are Low-cost And Light In Weight).  In Such Cases, Any Combination From The Following 3 Groups Can Be Selected For Shielding:

A) Braids Or Helically Wrapped (served) Shields
B) Round Wire Or Flat Foil
C) SP HSCA Or SPC

The Minimum Sizes Are:

a) SPC AWG 42 (0.06 Mm)
B) SP HSCA AWG 44 (0.05 Mm)
C) Flat Foil (i) SPC 0.03 Mm X 0.2 Mm (ii) SP HSCA 0.02 Mm X 0.2 Mm

Apart From Round Multi-core Cables, FLAT Bonded/ Woven Ribbon Cables Are Also Available With Plain Cores, Or With Twisted Pairs, Or With Shielded Wires/coaxial Cables As Cores.  In Many Situations, Flat Cables Provide Neat Solutions For Interconnections.  When The Space Is Limited, The Flat Cable Can Be Set Against The Wall And Take Much Less Space Than A Round Multi-core Cable With Same Numbe Of Cores.  Also, Where A Repeat Movement Back And Forth Is Desired (for Example A Drawer Or Door, Opening And Closing, Or A Printer Head Etc), Flat Cables Are Quite Useful.  In Some Applications, The Spacing Between Adjacent Cores Of Flat Cables Can Play An Important Role, Say For Deciding The Capacitance.  An Example Is The TV Antenna Cable.

PTFE (TEFLON)® Cable Applications

SATELLITE CABLE Are One Of The Leading Manufacturer Of PTFE (TEFLON)® Cable & Wire Manufacturer From Ahmedabad. Owing to the efforts of our capable and skilled teams of experts, we have earned position in the field of manufacturing and supplying the superior quality Cables & Wires. Our rich industry experience have enabled us to chance the various supplies of the market as well as of our precious clients. Our PTFE (TEFLON)® Cable & Wire mainly applicable in Industries, Aircraft, Helicopters & Military Equiments.
